9mm vs .40 Caliber Size: Understanding the Differences

Choosing the right handgun caliber is a crucial decision for self-defense, target shooting, or law enforcement. Two of the most popular options are the 9mm and the .40 caliber. While both are effective cartridges, they differ significantly in size, recoil, capacity, and overall performance. This comprehensive guide dives deep into the specifics of 9mm vs .40 caliber size, exploring their nuances and helping you make an informed decision based on your individual needs and preferences. We’ll examine the physical dimensions, ballistic performance, and practical implications of each cartridge, providing a detailed comparison that goes beyond the surface level.

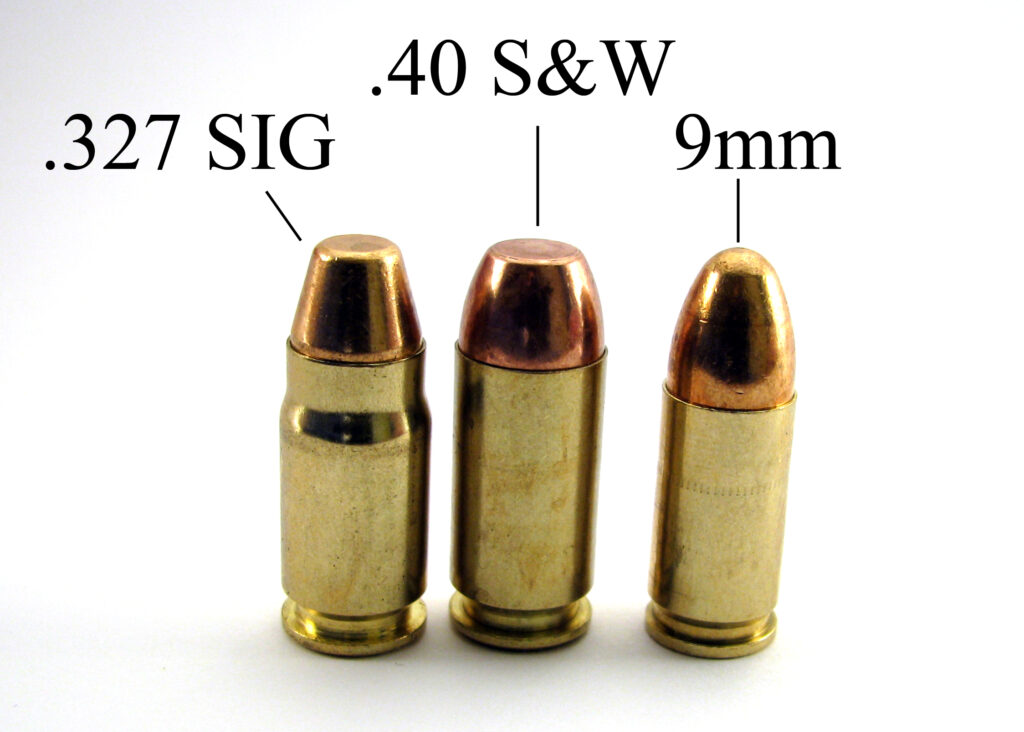

Understanding the Physical Dimensions: 9mm vs .40 Caliber

The most obvious difference between these two cartridges lies in their physical size. The 9mm, also known as 9x19mm Parabellum, is a smaller diameter cartridge compared to the .40 caliber, officially designated as 10x22mm. Let’s break down the key dimensions:

• Diameter: The 9mm bullet typically measures 0.355 inches in diameter, while the .40 caliber bullet measures 0.40 inches in diameter. This difference, though seemingly small, impacts several factors, including bullet weight, sectional density, and wound ballistics.
• Case Length: The 9mm cartridge case is shorter than the .40 caliber, contributing to its overall smaller size. This shorter case allows for higher magazine capacity in similarly sized handguns.
• Overall Length: The .40 caliber cartridge is generally longer than the 9mm, affecting the overall size and weight of the ammunition.

These dimensional differences directly influence the weight of the cartridge and the amount of propellant it can hold. The .40 caliber, being larger, typically has a heavier bullet and more powder, leading to higher energy and recoil.

A Closer Look at Bullet Weight and Sectional Density

Bullet weight plays a significant role in the cartridge’s ballistic performance. 9mm bullets typically range from 115 to 147 grains, while .40 caliber bullets commonly range from 155 to 180 grains. The heavier bullet of the .40 caliber generally translates to greater energy transfer upon impact.

Sectional density, which is the ratio of a bullet’s weight to its diameter squared, is another important factor. A higher sectional density indicates that the bullet will penetrate deeper for a given weight and diameter. While the .40 caliber has a heavier bullet, its larger diameter slightly reduces its sectional density compared to a 9mm loaded with a heavy-for-caliber bullet. However, the difference is often minimal, and the .40 caliber’s increased energy usually results in greater overall penetration.

Ballistic Performance: Energy, Velocity, and Trajectory

The ballistic performance of a cartridge is determined by several factors, including bullet weight, velocity, and energy. Let’s compare the typical ballistic performance of 9mm and .40 caliber:

• Velocity: 9mm rounds generally have a higher velocity than .40 caliber rounds, especially with lighter bullets. This higher velocity can result in a flatter trajectory, making it easier to hit targets at longer ranges.
• Energy: The .40 caliber typically delivers more energy on target due to its heavier bullet. This increased energy can translate to greater stopping power, which is a critical consideration for self-defense.
• Trajectory: Due to its higher velocity, the 9mm generally has a flatter trajectory, meaning the bullet drops less over distance. This can make it easier to aim and hit targets at varying ranges.

It’s important to note that these are general trends, and the actual ballistic performance can vary depending on the specific load (bullet weight, powder charge, etc.) and the firearm used.

Recoil: A Key Factor in Controllability

Recoil is the backward force felt by the shooter when a firearm is discharged. The .40 caliber generally produces more recoil than the 9mm due to its heavier bullet and higher energy. This increased recoil can make the .40 caliber more challenging to control, especially for inexperienced shooters.

Managing recoil is crucial for accuracy and follow-up shots. Excessive recoil can cause the shooter to lose their sight picture and slow down their rate of fire. The 9mm’s lower recoil makes it easier to control and allows for faster, more accurate follow-up shots.

Magazine Capacity and Firearm Size Considerations

The smaller size of the 9mm cartridge allows for higher magazine capacity in handguns of comparable size to those chambered in .40 caliber. This can be a significant advantage in self-defense situations where multiple rounds may be necessary.

For example, a Glock 19, a popular compact handgun, typically holds 15 rounds of 9mm. A similar-sized Glock 23, chambered in .40 caliber, typically holds 13 rounds. This difference of two rounds can be critical in a high-stress situation.

Furthermore, the smaller size of the 9mm allows manufacturers to produce more compact and lightweight handguns. This can be an advantage for concealed carry, where comfort and concealability are paramount.

Practical Applications: Self-Defense, Target Shooting, and Law Enforcement

Both the 9mm and .40 caliber are widely used in various applications, including self-defense, target shooting, and law enforcement. However, each cartridge has its strengths and weaknesses in each of these areas.

Self-Defense: Stopping Power vs. Controllability

For self-defense, the .40 caliber is often chosen for its perceived greater stopping power. The heavier bullet and higher energy of the .40 caliber are believed to increase the likelihood of incapacitating an attacker quickly. However, the increased recoil can make it more difficult to control, potentially reducing accuracy and follow-up shot speed.

The 9mm, on the other hand, offers a balance of stopping power and controllability. While it may not have the same raw energy as the .40 caliber, its lower recoil allows for faster, more accurate follow-up shots, which can be crucial in a self-defense situation. Modern 9mm ammunition, with advanced bullet designs, has also significantly improved its stopping power.

Target Shooting: Accuracy and Affordability

For target shooting, the 9mm is a popular choice due to its accuracy, affordability, and lower recoil. The flatter trajectory of the 9mm can make it easier to hit targets at longer ranges, and its lower recoil allows for longer shooting sessions without fatigue.

Furthermore, 9mm ammunition is generally less expensive than .40 caliber ammunition, making it a more economical choice for high-volume shooting.

Law Enforcement: A Shift Towards 9mm

Historically, the .40 caliber was widely adopted by law enforcement agencies due to its perceived greater stopping power. However, in recent years, many agencies have transitioned back to the 9mm. This shift is driven by several factors, including:

• Improved 9mm Ammunition: Modern 9mm ammunition with advanced bullet designs has significantly improved its stopping power, closing the gap with the .40 caliber.
• Increased Magazine Capacity: The higher magazine capacity of 9mm handguns provides officers with more rounds in a potentially life-threatening situation.
• Reduced Recoil: The lower recoil of the 9mm makes it easier to control, improving accuracy and follow-up shot speed, especially under stress.
• Reduced Liability: Some agencies believe that the lower recoil of the 9mm may reduce the risk of accidental shootings.

The .40 S&W: A Cartridge Born from Perceived Shortcomings

The .40 S&W cartridge was developed in the early 1990s as a direct response to the perceived shortcomings of both the 9mm and the .45 ACP in law enforcement applications. After a highly publicized shooting incident, the FBI sought a cartridge with more stopping power than the 9mm but with better controllability than the .45 ACP. The .40 S&W was designed to fill this perceived gap, offering a compromise between the two.

Understanding Cartridge Design and Its Impact

The design of a cartridge significantly impacts its performance. The 9mm, with its tapered case, feeds reliably in a wide range of firearms. The .40 S&W, with its straight-walled case, can sometimes be more sensitive to variations in chamber dimensions and magazine design. The 9mm is known for its consistent performance across various platforms, making it a reliable choice for diverse applications.

The Role of Ammunition Technology: Modern Innovations

Advancements in ammunition technology have blurred the lines between the 9mm and .40 caliber in terms of stopping power. Modern 9mm ammunition, utilizing advanced bullet designs such as hollow points with optimized expansion characteristics, can deliver comparable stopping power to traditional .40 caliber loads. These innovations have made the 9mm a more viable option for self-defense and law enforcement, contributing to its resurgence in popularity.

Comparative Analysis of Key Features

Let’s break down the key features of the 9mm and .40 caliber in a side-by-side comparison:

• Stopping Power: The .40 caliber generally delivers more energy on target, potentially resulting in greater stopping power.
• Recoil: The 9mm produces less recoil, making it easier to control and allowing for faster, more accurate follow-up shots.
• Magazine Capacity: The 9mm allows for higher magazine capacity in handguns of comparable size.
• Firearm Size: The 9mm allows for more compact and lightweight handgun designs.
• Accuracy: The 9mm can be more accurate due to its flatter trajectory and lower recoil.
• Affordability: 9mm ammunition is generally less expensive than .40 caliber ammunition.

Advantages of the 9mm: A Modern Perspective

The 9mm offers several advantages, particularly in light of modern ammunition technology and evolving shooting philosophies:

• Improved Controllability: The lower recoil of the 9mm makes it easier to control, leading to improved accuracy and faster follow-up shots. This is particularly important in high-stress situations where fine motor skills can be impaired.
• Higher Capacity: The higher magazine capacity of 9mm handguns provides a significant advantage in self-defense or law enforcement scenarios where multiple rounds may be necessary.
• Reduced Fatigue: The lower recoil of the 9mm allows for longer shooting sessions without fatigue, making it a more enjoyable and effective choice for training and practice.
• Concealability: The availability of compact and lightweight 9mm handguns makes them ideal for concealed carry, providing a comfortable and discreet option for self-defense.

Drawbacks of the 9mm: Considerations and Limitations

Despite its advantages, the 9mm also has some potential drawbacks:

• Perceived Lower Stopping Power: While modern 9mm ammunition has significantly improved its stopping power, some still perceive it as less effective than the .40 caliber.
• Bullet Weight Limitations: The smaller diameter of the 9mm limits the maximum bullet weight that can be used, potentially affecting penetration in certain scenarios.
• Reliance on Ammunition Technology: The effectiveness of the 9mm is heavily reliant on the use of high-quality, modern ammunition with advanced bullet designs.

Advantages of the .40 Caliber: A Focus on Energy Transfer

The .40 caliber offers several advantages, primarily related to its energy transfer capabilities:

• Greater Energy Transfer: The heavier bullet of the .40 caliber delivers more energy on target, potentially resulting in greater stopping power.
• Wider Wound Cavity: The larger diameter of the .40 caliber can create a wider wound cavity, potentially increasing the likelihood of incapacitating an attacker.
• Penetration Potential: The heavier bullet of the .40 caliber can provide greater penetration, particularly against barriers or heavy clothing.

Drawbacks of the .40 Caliber: Recoil and Capacity

The .40 caliber also has some notable drawbacks:

• Increased Recoil: The higher recoil of the .40 caliber makes it more challenging to control, potentially reducing accuracy and follow-up shot speed.
• Lower Capacity: The larger size of the .40 caliber limits magazine capacity in handguns of comparable size.
• Increased Firearm Size: Handguns chambered in .40 caliber are often larger and heavier than those chambered in 9mm, potentially affecting concealability and comfort.
• Higher Ammunition Cost: .40 caliber ammunition is generally more expensive than 9mm ammunition.

Expert Verdict: Choosing the Right Caliber for You

The choice between 9mm and .40 caliber ultimately depends on individual needs, preferences, and shooting skills. The 9mm offers a balance of controllability, capacity, and affordability, making it a versatile choice for self-defense, target shooting, and law enforcement. The .40 caliber offers greater energy transfer but comes at the cost of increased recoil and reduced capacity. For experienced shooters who prioritize stopping power and are comfortable managing recoil, the .40 caliber may be a viable option. However, for most shooters, the 9mm provides a more practical and effective solution. Based on our extensive experience and analysis, we recommend the 9mm for its overall balance of performance, controllability, and versatility.

Alternatives to consider include the .45 ACP, known for its significant stopping power but also substantial recoil, and the .38 Special, a classic revolver cartridge offering moderate recoil and decent stopping power. However, for semi-automatic handguns, the 9mm remains a top contender due to its modern design and widely available ammunition.

Navigating the Caliber Debate: A Final Thought

Ultimately, the “best” caliber is the one you can shoot accurately and consistently under stress. Both the 9mm and .40 caliber are capable cartridges with their own strengths and weaknesses. Consider your individual needs, shooting skills, and intended use when making your decision. If you’re still unsure, we encourage you to try shooting both calibers at a local range to experience the differences firsthand. Share your thoughts and experiences with 9mm vs .40 caliber in the comments below.
